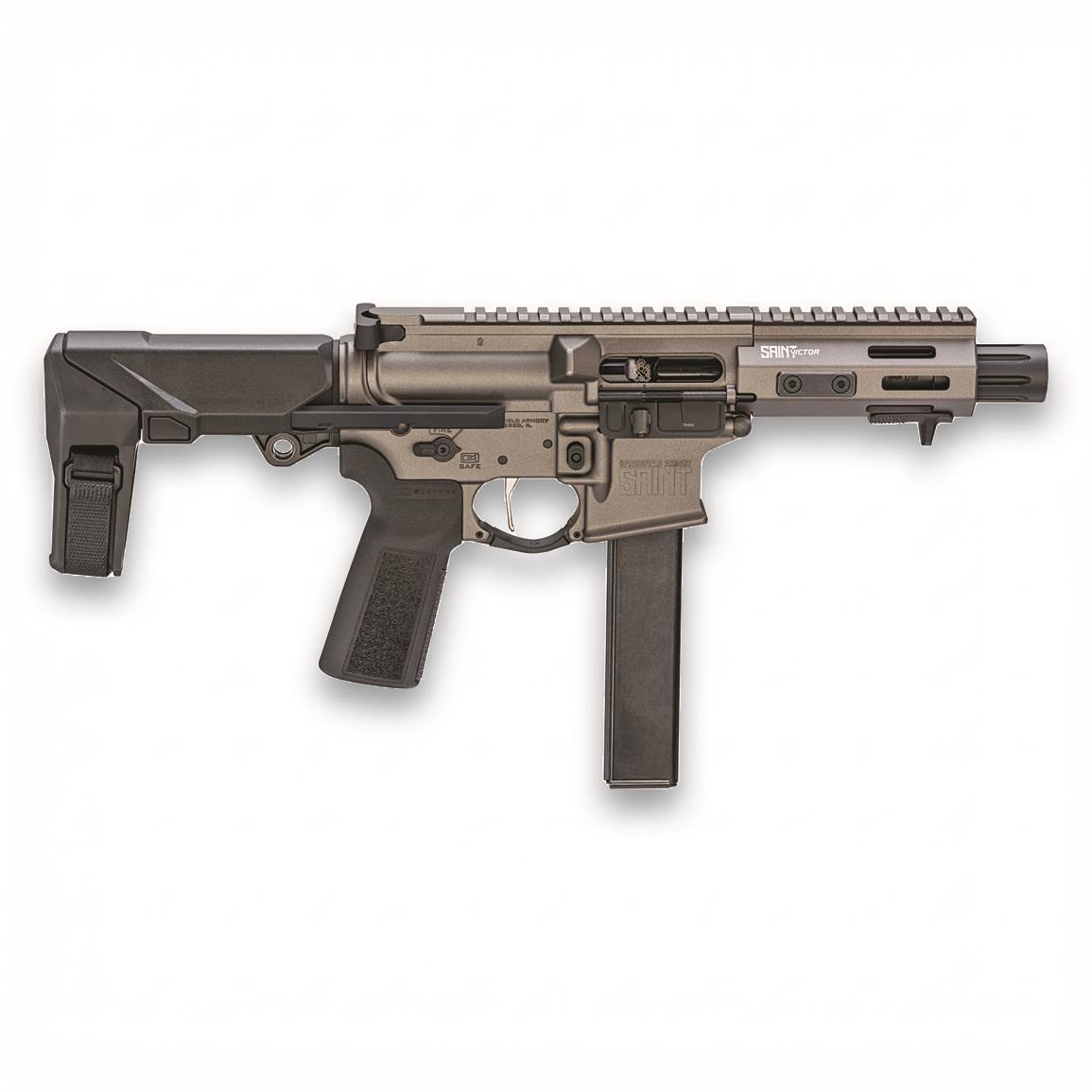

Springfield SAINT® Victor 9mm PDW, Semi-Auto, 9mm, 5.5" Barrel, 32+1 Rounds


Be the first to review this product

Use previous and next buttons, or left and right arrow keys, to change images. Press escape to close.

Springfield SAINT® Victor 9mm PDW, Semi-Auto, 9mm, 5.5" Barrel, 32+1 Rounds


Be the first to review this product
Item #: 750188
Mfg. Number: STV95509T-PDW
UPC: 706397002008
Built around a 5.5" CMV barrel and the SB Tactical HBPDW™ brace, the SAINT® Victor 9mm PDW is a direct blowback pistol caliber platform engineered for maximum compactness without sacrificing reliability. Forged 7075-T6 aluminum upper and lower receivers—the lower equipped with Springfield's Accu-Tite™ tension system—provide a solid foundation finished in Tungsten Gray Cerakote® for corrosion and abrasion resistance. The nitride-finished barrel runs a 1:10 twist and exposes 1/2-28 threads beneath the SA Muzzle Drum for direct suppressor attachment. A free-float aluminum handguard with SA locking tabs and M-Lok® slots runs the length of the barrel, topped by a full-length Picatinny rail for optics and accessories, with a low-profile hand stop included for a consistent forward index point. The nickel boron-coated flat trigger and 45-degree ambidextrous short-throw safety keep the controls precise, while the B5 Systems Type 23 P-Grip and polymer trigger guard round out the lower. The SB Tactical HBPDW™ brace rides on a 3-position adjustable receiver extension with QD end plate, keeping the overall package between 18.5" and 23.25". Feeds from a 32-round Colt®-pattern magazine. Includes a padded rifle case with adjustable interior straps and two exterior magazine pouches.
Features & Benefits
Features and Benefits
  • 9mm
  • 5.5" CMV barrel, Melonite® finish, 1:10 twist, 1/2x28 threaded muzzle
  • SA Muzzle Drum (removable for suppressor use)
  • Forged 7075-T6 aluminum upper receiver, Type III hardcoat anodized
  • Forged 7075-T6 aluminum lower receiver, Type III hardcoat anodized, Accu-Tite™ tension system
  • 9mm direct blowback BCG
  • Free-float aluminum handguard with SA locking tabs, M-Lok®, full-length top Picatinny rail
  • Low-profile hand stop
  • SB Tactical HBPDW™ pistol brace, 3-position adjustable receiver extension with QD end plate
  • B5 Systems Type 23 P-Grip and polymer trigger guard
  • Nickel boron-coated flat trigger
  • 45-degree ambidextrous short-throw safety
  • Tungsten Gray Cerakote® finish
  • Feeds from Colt®-pattern magazines
  • Includes (1) 32-round magazine and padded rifle case with two exterior magazine pouches

Key Specifications

  • Caliber: 9mm
  • Action: Semi-automatic, direct blowback
  • Capacity: 32+1 rounds
  • Barrel Length: 5.5"
  • Barrel Material: CMV
  • Barrel Finish: Melonite®
  • Barrel Twist: 1:10
  • Muzzle Thread: 1/2x28
  • Muzzle Device: SA Muzzle Drum
  • Upper Receiver: Forged 7075-T6 aluminum, Type III hardcoat anodized
  • Lower Receiver: Forged 7075-T6 aluminum, Type III hardcoat anodized, Accu-Tite™
  • BCG: 9mm blowback
  • Handguard: Free-float aluminum, SA locking tabs, M-Lok®, full-length top rail
  • Pistol Brace: SB Tactical HBPDW™
  • Grip: B5 Systems Type 23 P-Grip
  • Trigger: Nickel boron-coated flat
  • Charging Handle: Standard
  • Safety: 45-degree ambidextrous, short-throw
  • Receiver Extension: 3-position adjustable
  • Magazine Included: 1 (32-round Colt®-pattern)
  • Overall Length: 18.5"–23.25"
  • Weight: 5 lbs. 15 oz.
  • Finish: Tungsten Gray Cerakote®
