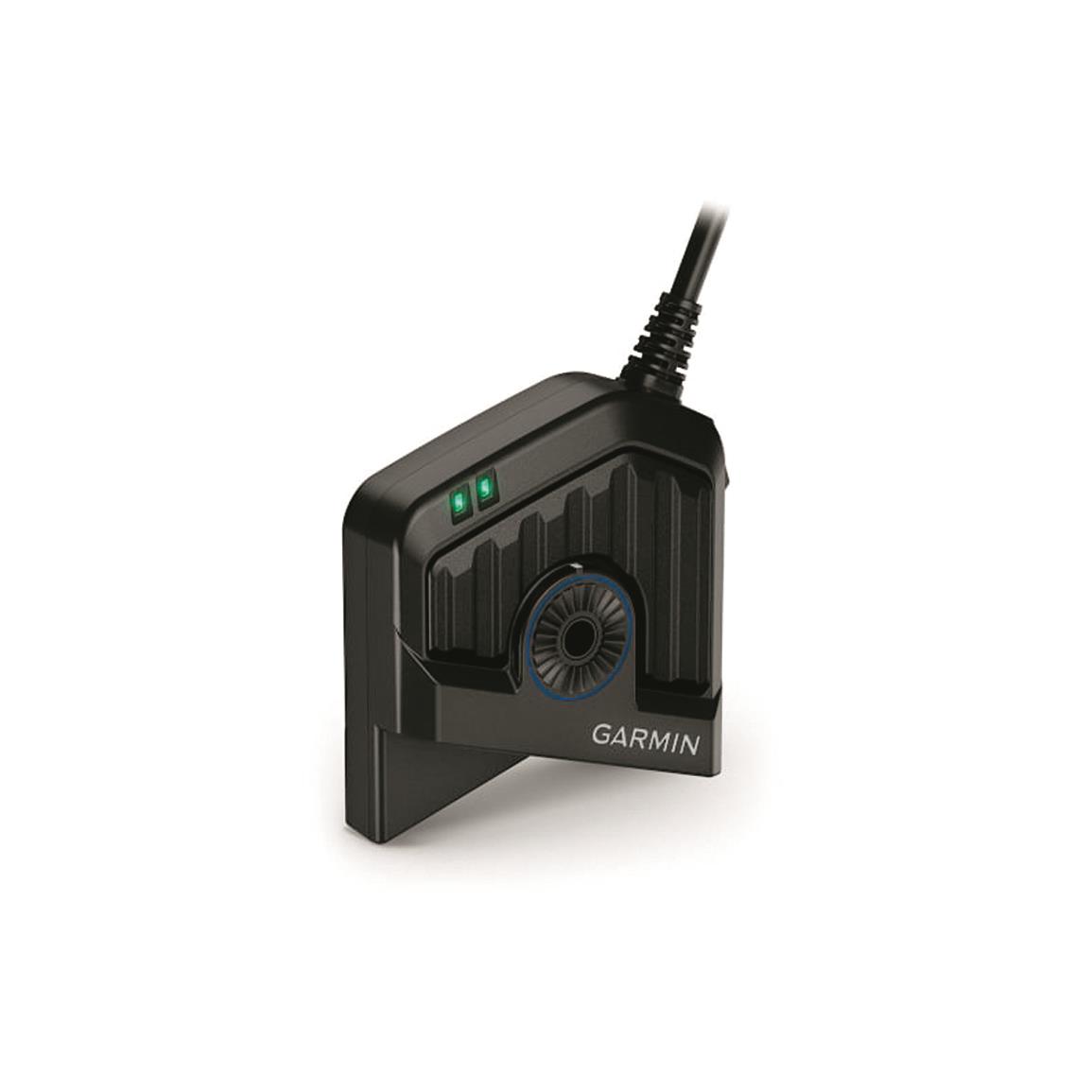

Garmin LiveScope 2 LVS42HD Transducer


Be the first to review this product
GARMIN logo
Item #: 750554
Mfg. Number: 010-03899-00
UPC: 753759369101
The Garmin LiveScope 2 LVS42HD Transducer gives anglers ultra high-definition live sonar views that make it easier to track bass, walleye, crappie, lake trout, and baitfish in real time at castable range. With improved target separation and high-definition imagery, anglers can see fish, structure, bottom detail, and lure movement with the clarity needed for forward-facing sonar tactics like casting to suspended fish, vertical jigging, drop shotting, and watching fish react to a bait before setting the hook. The LVS42HD delivers highly detailed imagery at castable distances and bottom tracking out to 125 feet, while wider viewing angles in Forward, Down, and Perspective modes help cover more water around the boat. Fast processing speeds show fish reactions in real time, and the no-black-box setup simplifies installation for compatible Garmin systems. An automatic sonar shutoff feature turns the sonar off when the transducer leaves the water, adding smart protection during trailering, storage, and setup.
  • Ultra high-definition live sonar imagery improves target separation and helps distinguish fish, bait, structure, and your lure
  • See fish and lures move in real time for more confident casting, jigging, drop shotting, and vertical presentations
  • No black box needed for easier installation with compatible Garmin chartplotters
  • Delivers highly detailed imagery at castable range and bottom tracking out to 125 feet
  • Wider angles in Forward, Down, and Perspective modes help anglers scan more water around the boat
  • Fast processing speeds show how fish react to your lure so you can time your hookset
  • Automatic sonar shutoff turns the unit off when the transducer comes out of the water
  • Ideal for bass, walleye, crappie, lake trout, and other species that respond well to forward-facing sonar tactics
  • Includes adjustable perspective shaft mount for LiveScope 2 transducers, trolling motor barrel mount, power/network cable with adapter, and hardware

Key Specifications

  • Transducer beam width forward: 20" x 165"
  • Transducer beam width down, perspective: 20" x 180"
  • Cable length: 18 ft. (5.5 m)
  • Number of pins: 7
  • Dimensions: 5.3 x 5.2 x 1.9 in.
  • Weight: 3.62 lbs.
  • Operating temperature range: 0 C to 40 C
  • Power input: 10-35 V
  • Power usage: 32 W max
  • Frequency: 850 kHz - 1600 kHz
  • Transmit power: 521W
  • Maximum down and forward depth: 125 ft.
  • Sonar type: Live
  • Target separation at 100 ft.: 12.6"
  • Target separation at 30 ft.: 3.8"
