EOTech OGL C Commercial Power Green Laser

EOTECH

EOTech OGL C Commercial Power Green Laser

EOTECH logo

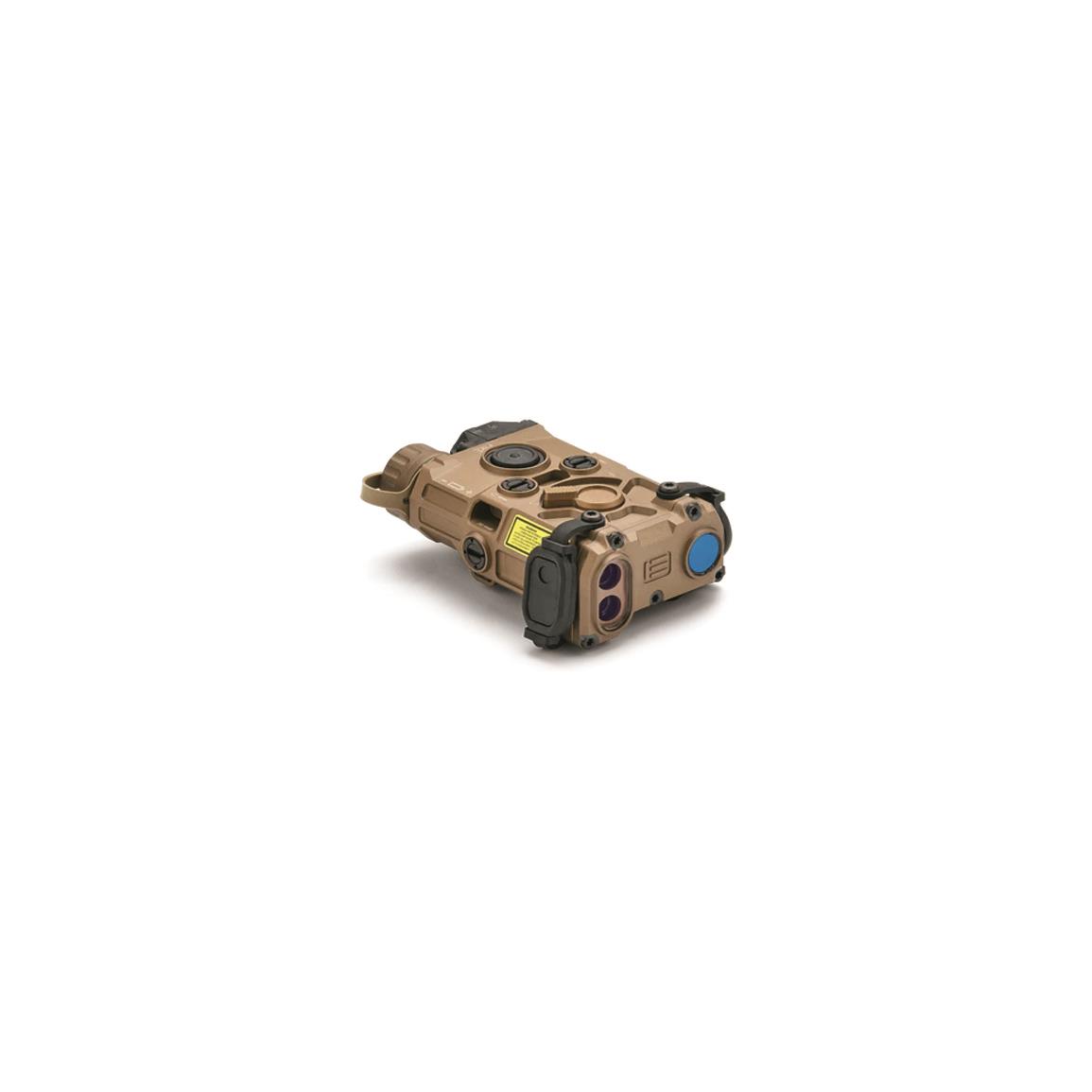

The OGL C brings EOTech's duty-proven OGL laser platform to the commercial market in an eye-safe, consumer-ready package. Co-aligned green visible and infrared aiming lasers support daylight, low-light, and night-vision use, while a dedicated IR illuminator with fast spot-to-flood adjustment keeps you oriented as light conditions change. A patent-pending sliding lever controls IR illuminator beam divergence, so you can adjust beam spread on the fly, even in the dark. Housed in a rugged all-aluminum body about the size of a deck of cards, the OGL C mounts to the top rail or either side of the handguard without crowding front iron sights. Intuitive controls, including a mode selector, windage and elevation adjustments, and a focus slide, keep operation straightforward, and a single CR123 lithium battery delivers up to 9 hours of run time.
  • Eye-safe design available to the general public
  • Co-aligned green visible and IR aiming lasers for daylight, low-light, and night-vision use
  • Dedicated NIR illuminator with high-performing VCSEL diode for a crisp, clean beam
  • IR and visible aim lasers optically paired for easy zeroing
  • Sliding lever controls IR illuminator beam divergence for easy adjustment in the dark
  • All-aluminum housing for duty-grade durability
  • Compact design, similar in size to a deck of playing cards
  • Crane-type laser port with included Modlite 7" switch
  • Tethered protective caps and pattern generators
  • Single CR123 lithium battery provides up to 9 hours of run time
  • What's in the box:
  • OGL C
  • Zippered soft case
  • Multitool
  • Pattern generators
  • Remote switch
  • CR123 battery

Key Specifications

  • Visible Aim Laser
  • Output Power (High): ≤ 0.5 mW (Class 3R)
  • Beam Divergence: < 0.5 MRAD
  • Wavelength: 515 nm (+15/-5 nm)
  • NIR Aim Laser
  • Output Power (High): ≤ 0.67 mW (Class 3R)
  • Beam Divergence: < 0.5 MRAD
  • Wavelength: 830 nm (±10 nm)
  • NIR Illuminator
  • Output Power (High): ≤ 30 mW (Class 3R)
  • Beam Divergence: Spot ≥ 30 MRAD, Flood ≥ 105 MRAD
  • Wavelength: 850 nm (±10 nm)
  • Battery: (1) CR123 lithium
  • Battery Life: Up to 9 hrs.
  • Housing: Aluminum
