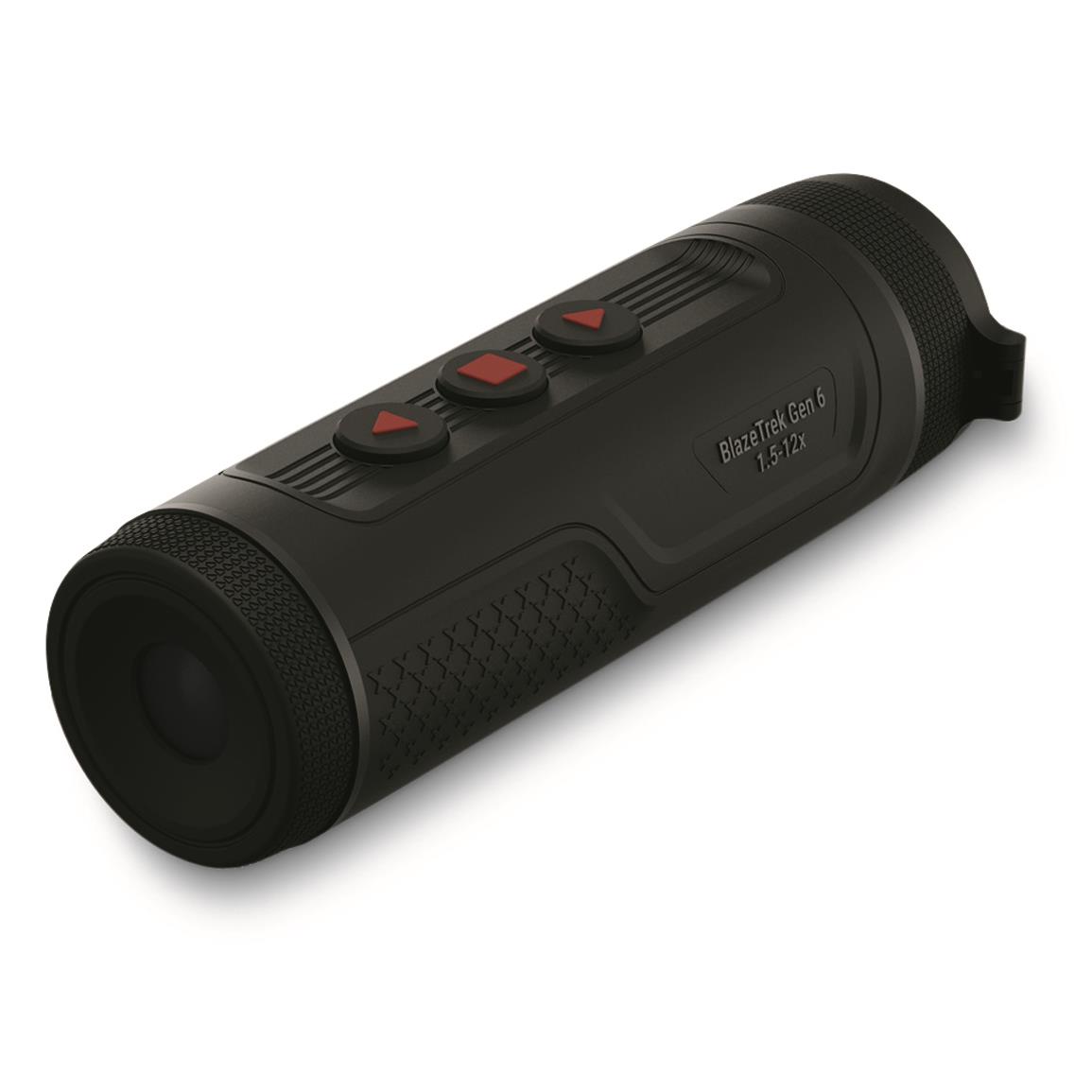

ATN BlazeTrek 6 Thermal Monocular


Be the first to review this product

Use previous and next buttons, or left and right arrow keys, to change images. Press escape to close.

ATN

ATN BlazeTrek 6 Thermal Monocular


Be the first to review this product
ATN logo
Item #: 749644
Mfg. Number: TIMNBLT619G6
UPC: 658175473459
Sharper, smarter, stronger. The 6th generation of the ATN BlazeTrek Thermal Monocular is refreshed and better than ever. An advanced thermal sensor offers a resolution of 640x512 (50 Hz), with a 12 μm pixel size and an exceptional NETD rating of <18mK, enhancing sensitivity to temperature variations for improved image clarity.
Features & Benefits
Features and Benefits
  • 12μm VOx Uncooled Focal Plane Array
  • 6 color palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, & Sepia
  • Captures images and videos
  • 32GB internal memory
  • Built-in WiFi and app connectivity
  • Easily fits in a pocket for portability
  • IP67 waterproof rating
  • USB-C rechargeable battery

Key Specifications

  • Item Number: 749644
  • 619
  • Sensor: 640x512
  • Refresh Rate: 50 Hz
  • Display Resolution: 800x600 OLED
  • Thermal Sensitivity (NETD): ≤18mK
  • Magnification: 1.5-12x
  • Field of View: 22.8° x 18.3°
  • Lens System: 19mm
  • Human Detection Range: 1,000m
  • Battery type: Internal rechargeable
  • Battery life (Li-Ion): Up to 6.5 hours
  • Operating temperature: -30° to 55°F
  • Dimensions: 6x1.7x3"h.
  • Mfg. Number: TIMNBLT619G6
  • 625
  • Sensor: 640x512
  • Refresh Rate: 50 Hz
  • Display Resolution: 800x600 OLED
  • Thermal Sensitivity (NETD): ≤18mK
  • Magnification: 1.75-14x
  • Digital Zoom: 1x, 2x, 4x, 8x
  • Field of View: 17.5° x 14°
  • Lens System: 25mm
  • Human Detection Range: 1,300m
  • Battery type: Internal rechargeable
  • Battery life (Li-Ion): Up to 6.5 hours
  • Operating temperature: -30° to 55°F
  • Dimensions: 6.20” x 2.23” x 1.98”
  • Weight: 0.7 lbs.
  • Mfg. Number: TIMNBLT625G6
