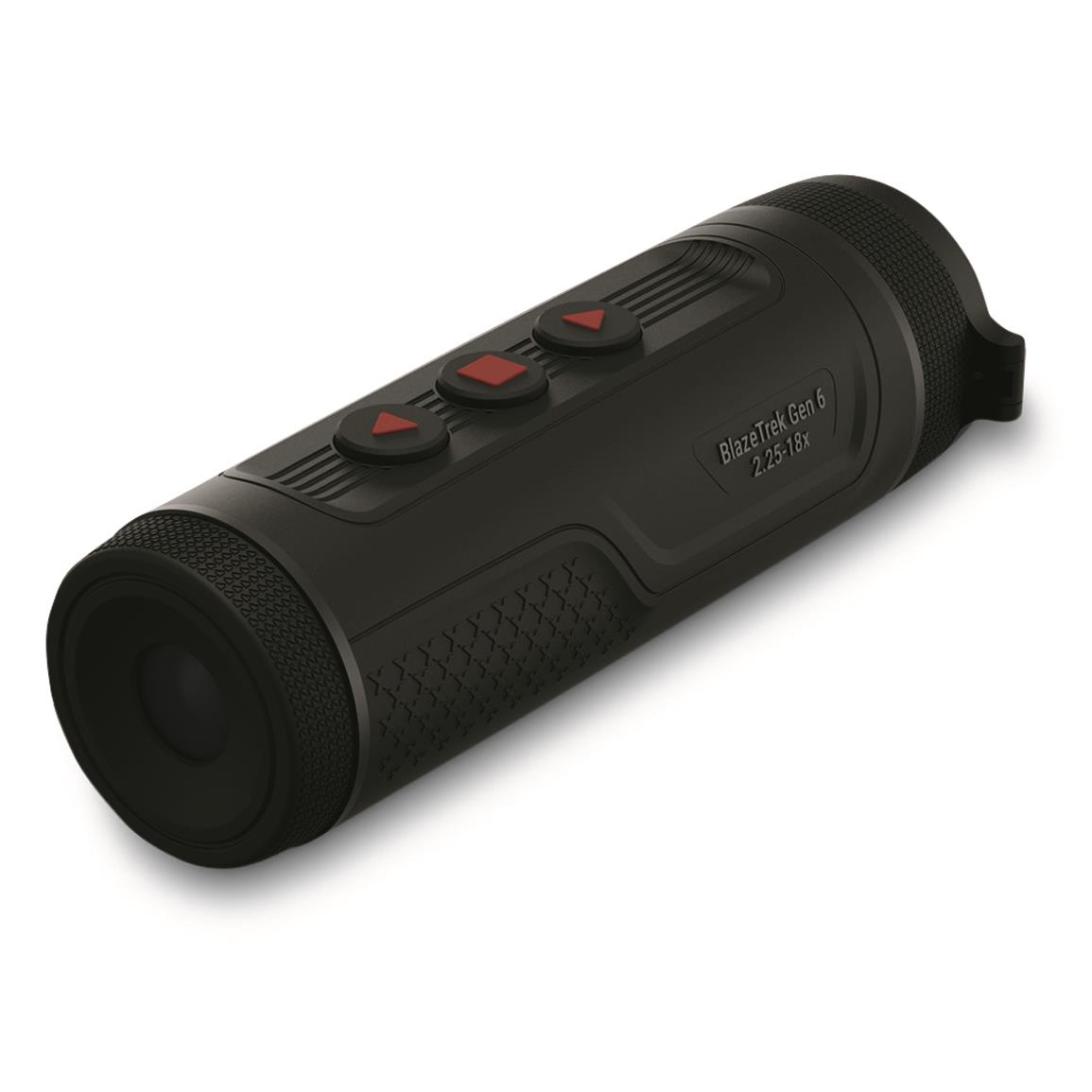

ATN BlazeTrek 6 Thermal Monocular, 384×288 Sensor, 12μm, ≤18mK NETD


Be the first to review this product

Use previous and next buttons, or left and right arrow keys, to change images. Press escape to close.

ATN

ATN BlazeTrek 6 Thermal Monocular, 384×288 Sensor, 12μm, ≤18mK NETD


Be the first to review this product
ATN logo
Item #: 749643
Mfg. Number: TIMNBLT319G6
UPC: 658175473374
Sharper, smarter, stronger. The 6th generation of the ATN BlazeTrek Thermal Monocular is refreshed and better than ever. An advanced thermal sensor offers a resolution of 384x288, with a 12 μm pixel size and an exceptional NETD rating of ≤18mK, enhancing sensitivity to temperature variations for improved image clarity.
  • 12μm VOx Uncooled Focal Plane Array
  • 6 color palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, & Sepia
  • Captures images and videos
  • 32GB internal memory
  • Built-in WiFi and app connectivity
  • Easily fits in a pocket for portability
  • IP67 waterproof rating
  • USB-C rechargeable battery

Key Specifications

  • 319
  • Sensor: 384x288
  • Refresh Rate: 50 Hz
  • Display Resolution: 800x600 OLED
  • Thermal Sensitivity (NETD): ≤18mK
  • Magnification: 2.25-18x
  • Digital Zoom: 1x, 2x, 4x, 8x
  • Field of View: 14.4° x 10.8°
  • Lens System: 19mm
  • Human Detection Range: 1,000m
  • Battery Type: Internal Rechargeable
  • Battery Life (Li-Ion): Up to 8 hours
  • Operating Temperature: -30°C to 55°C (-22°F to 131°F)
  • Dimensions: 6" x 1.7" x 3"h.
  • Mfg. Number: TIMNBLT319G6
  • 325
  • Sensor: 384x288
  • Refresh Rate: 50 Hz
  • Display Resolution: 800x600 OLED
  • Thermal Sensitivity (NETD): ≤18mK
  • Magnification: 2.8-22x
  • Digital Zoom: 1x, 2x, 4x, 8x
  • Field of View: 10.9° x 8.2°
  • Lens System: 25mm
  • Human Detection Range: 1,300m
  • Battery Type: Internal Rechargeable
  • Battery Life (Li-Ion): Up to 8 hours
  • Operating Temperature: -30°C to 55°C (-22°F to 131°F)
  • Dimensions: 6.20" x 2.23" x 1.98"
  • Weight: 0.7 lbs.
  • Mfg. Number: TIMNBLT325G6
