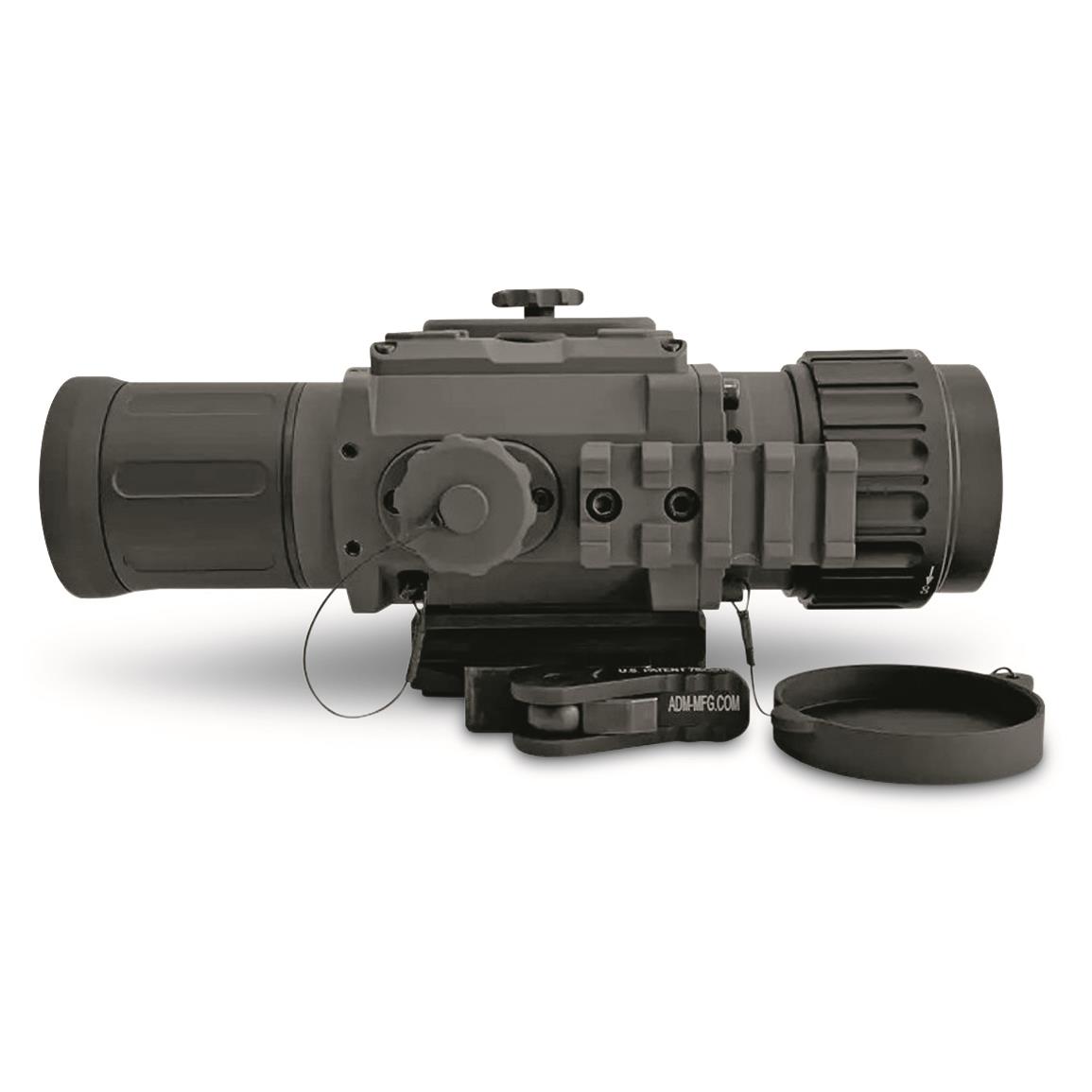

Armasight Operator 640 1-4x35mm Thermal Clip-On, Digital Reticle

Armasight Operator 640 1-4x35mm Thermal Clip-On, Digital Reticle

The Armasight Operator 640 Thermal Clip-On enhances any toolkit for military, law enforcement, and hunters alike. Designed for seamless integration, it mounts in front of a 1-6x day scope with no re-zeroing required, making it mission-ready straight out of the box. Powered by the ArmaCORE™ 640x480 thermal sensor and a 35mm germanium lens, the Operator delivers outstanding thermal clarity, and a detection range up to 1300 meters, even in total darkness, fog, smoke, or harsh weather. Built for versatile applications like hunting, patrolling, and overwatch, the Operator 640 offers a wide range of features designed for ease of use in the field. The quick-detach mount allows for rapid attachment or removal, while the intuitive 3-button controls make it simple to operate, even in high-stress environments. With multiple color palettes and image detail enhancement, users can optimize visuals for different scenarios, improving target identification and situational awareness. The Operator 640’s durability is unmatched, with a high-strength aluminum alloy body that can withstand challenging conditions while remaining lightweight and ergonomic. Designed with long battery life, it provides up to 4 hours of runtime at 20°C, keeping you focused on the mission without interruptions.
Features & Benefits
Features and Benefits
  • Video & Image Capture: Easily document and review footage
  • USB-C Connectivity: Stream and view content on external devices
  • Quick-Detach Mount: Fast and secure mounting in any setting
  • Battery Status Indicator: Monitor power levels for reliable use
  • Multiple Color Palettes & Image Enhancements: Customizable to your needs
  • Includes:
  • Operator Clip-On
  • Quick Detach Mount
  • USB-C Cable
  • Thermal Zeroing Target
  • 2 x CR123A Batteries
  • Lens Cloth
  • Soft Case
  • Product Manual

Key Specifications

  • Item Number: 749094
  • Magnification: 1–4x
  • Objective Lens Diameter: 35 mm (germanium)
  • Reticle: Digital
  • Sensor: ArmaCORE 640x480 thermal sensor
  • Detection Range: Up to 1300 meters
  • Display: OLED
  • Power Supply: 2 × CR123A batteries
  • Runtime: 4 hours at 20° C
  • Mount Type: Quick-detach mount (no re-zeroing)
  • Video & Image Capture: Yes; via USB-C
  • Color Palettes: Multiple selectable options
  • Body Material: Aluminum alloy housing
  • Environmental Rating: MIL-STD compliant, weather-resistant
  • Mfg. Number: TAVT66CN3OPER102
